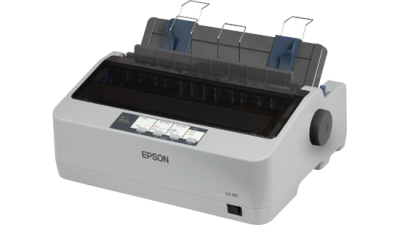

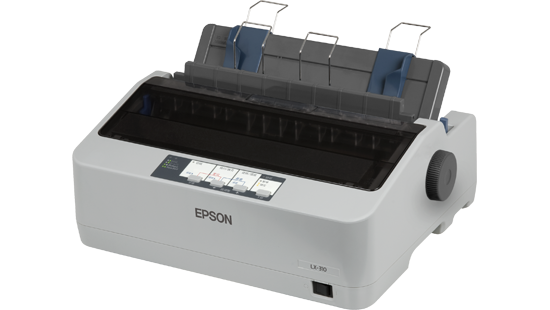

EPSON LX-310 PRINTER



Code :

Description

Print Method Impact dot matrix
Number of Pins in Head 9 pins
Print Direction Bi-direction with logic seeking
Control Code ESC/P and IBM PPDS emulation
Print Speed
High Speed Draft10/12/15 cpi 347 / 357 / 390 cps
High Speed Draft Condensed17/20 cpi 383 / 298 cps
Draft10/12/15 cpi 260 / 312 / 223 cps
Draft Condensed17/20 cpi 222 / 260 cps
Draft Emphasized10 cpi 130 cps
NLQ10/12/15/17/20 cpi 65 / 78 / 55 / 47 / 56 cps
Print Characteristics
Character Sets Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15
Bitmap Fonts Epson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: Proporational
Barcode Fonts EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet
Printable Columns
Pitch10/12/15/17/20 cpi 80 / 96 / 120 / 137 / 160 cpl
Paper Handling
Paper Path
Tractor Rear in, Top out
Manual Insertion Rear in, Top out
Paper Size LengthWidthThickness
Cut Sheet (Single Sheet) 100 – 364mm (3.9 – 14.3″)100 – 257mm (3.9 – 10.1″)0.065 – 0.14mm (0.0025 – 0.0055″)
Cut Sheet (Multi Part) 100 – 364mm (3.9 – 14.3″)100 – 257mm (3.9 – 10.1″)0.12 – 0.39mm (0.0047 – 0.015″) (Total)
Envelope (No.6) 92mm (3.6″)165mm (6.5″)0.16 – 0.52mm (0.0063 – 0.0205″) (Total)
Envelope (No.10) 105mm (4.1″)241mm (9.5″)0.16 – 0.52mm (0.0063 – 0.0205″) (Total)
Continuous Paper (Single Sheet an Multi part) 101.6 – 558.8mm (4.0 – 22.0″)101.6 – 254.0mm (4.0 – 10.0″)0.065 – 0.39mm (0.0025 – 0.015″) (Total)
Roll Paper  216mm (8.5″)0.07 – 0.09mm (0.0025 – 0.0035″)
Paper Feeding
Standard Friction, Push Tractor
Optional Roll Paper Holder
Copies Original + 4 copies
Line Spacing 4.23mm (1/6″) or programmable in increments of 0.118mm (1/216″)
Input Data Buffer 128KB
Interface
Standard Bi-directional parallel interface (IEEE-1284 nibble mode supported) USB 2.0 Full-Speed Serial
Ribbon Cartridge
Standard Fabric Ribbon Cartridge (Black)
Ribbon Life Approx. 4.0 million characters (Draft 10cpi, 14 dots/character)
Acoustic Noise Approx. 53dB(A) (ISO 7779 pattern)
Reliability
Mean Print Volume Between Failure (MVBF) Approx. 20 million lines (Except print head)
Mean Time Between Failure (MTBF) Approx. 10,000 POH (25% Duty)
Print Head Life Approx. 400 million strokes/wire
Control Panel 4 switches and 5 LEDs
Environmental Conditions (Operating)
Temperature 5 ~ 35°C
Humidty 10 ~ 80% RH
Electrical Specification
Rated Voltage AC 120V / AC 220 – 240V
Rated Frequency 50Hz – 60Hz
Power Consumption
Operating Approx. 27W (ISO/IEC 10561 Letter pattern),(ENERGY STAR compliant)
Sleep Mode Approx. 1.1W
Auto Off Mode Approx. 0.2W (120V), Approx. 0.3W (230V)
Power Off 0W
Printer Driver / Utility
Operating System Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista®
Utility
Epson Status Monitor 3 Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista®
Epson Printer Setting Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista®
